01Slide onto the edge
The clip is fitted onto the prepared plate edge.
01 / POSITION
Welding gap clips
Set the gap.
Position the plates.
The clips slide onto the plate edge before tack welding. Their wire diameter acts as a spacer to set the root gap between the components.
The principle: establish the gap during assembly, exactly where the welded joint will be made.
See how they work
| Clip size | Plate thickness |
|---|---|
| 2.0 mm | 4–8 mm |
| 2.4 mm | 6–15 mm |
| 3.0 mm | 8–35 mm |
| 4.0 mm | 12–40 mm |
| 5.0 mm | 15–50 mm |
IN USE
A clear sequence.
Right on the workpiece.
The welding gap clip is used when positioning the components. These photographs show the preparation; the complete technical sequence is illustrated in the original instructions below.
01
02Position the components
During assembly, the clips sit between the plates and set the gap.
DETAILPrepare the joint
Follow the instructions and the applicable welding procedure for subsequent handling and root-pass welding.

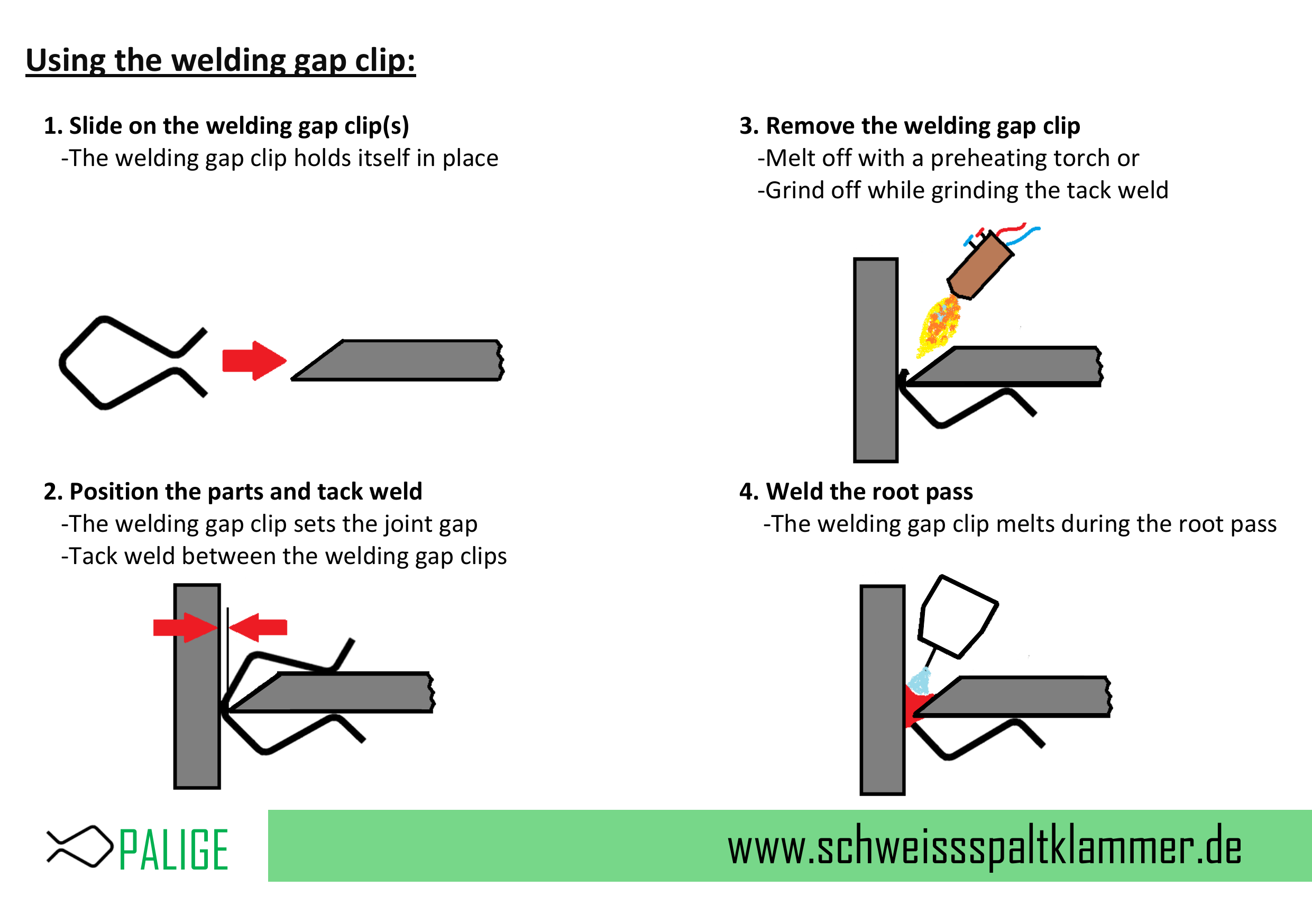

ENGLISH INSTRUCTIONSInstructions for use
English translation of the instructions with all four technical illustrations. Open the image to enlarge it.
These instructions complement the workplace welding procedure. Material, gap size and welding process must be selected for the specific application.
